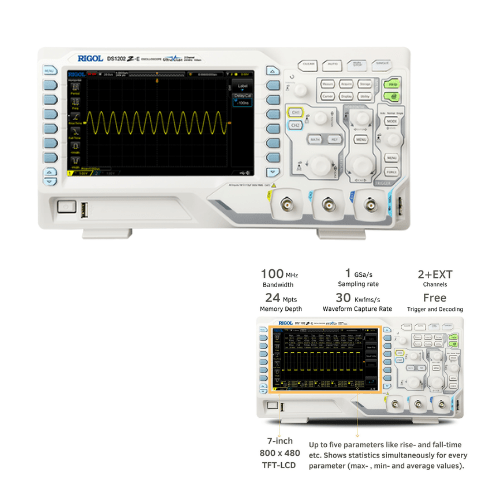

DS1102Z-E

The DS1000Z-E Series are also part of this family and include 100 and 200 MHz, 2 Channel models. The "-S" models include a 2 channel integrated waveform generator and the PLUS models are upgradable to Mixed Signal Oscilloscopes with the purchase of the RPL1116 digital lead kit.?

Analog channel bandwidth: 100 MHz
2 analog channels
Real-time sample rate up to 1 GSa/s
Memory depth up to 24 Mpts(Std.)
Up to 30,000 wfms/s waveform capture rate
Up to 60,000 frames hardware real-time waveform recording and playback functions
Innovative "UltraVision" technology
Various trigger and bus decoding functions
Low noise floor, vertical scale range: 500 uV/div to 10 V/div
