GXV3504

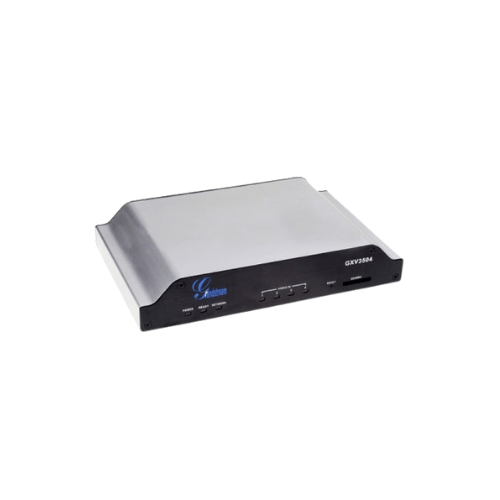

GXV-3504 IP Video Encoders
The GXV3501/3504 is a powerful, next generation digital video surveillance encoder. The GXV3501/3504 provides an easy to manage multi camera IP solution.
The GXV3501/3504 combines cutting-edge technology, including: support for SIP, H.264 BP, 2- way audio, and PoE, for best-in-class scalability, ease of integration and security. The unique incorporation of TCP/IP protocols creates sophisticated, flexible networking and remote control abilities.
Advanced multi-streaming-rate real-time H.264, Motion JPEG at D1 resolution
1 or 4 Analog video inputs (BNC) and 1 or 4 alarm input & outputs
Audio input and output, RS485/232, PTZ control
24MB pre-/post-event recording buffer per port
USB 2.0 port and SD slot for storage/wireless network card
Integrated Power-over-Ethernet (802.3af), optional antenna for wireless network
Embedded video analytics including motion (up to 16 target areas) & video loss detection
SIP/VoIP support for two-way audio communications and video streaming to mobile phones and video phones
Built-in high performance streaming server to allow up to 12 simultaneous D1 viewers or 25 CIF viewers
