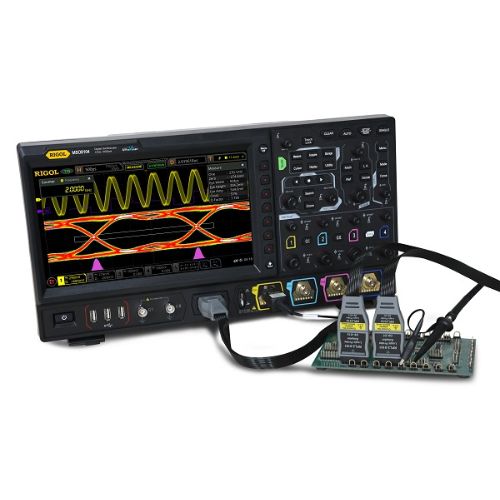

MSO8204
2 GHz, 10 GSa/s, 500 Mpts, 4+16 CH MSO
The MSO8000 Series Oscilloscopes combine best in class sampling and memory depth with our modern, flexible User Interface enabled by our new UltraVision II architecture and innovative Phoenix Chipset. With 600 MHz,1 GHz, and 2 GHz models each with 4 analog channels the MSO8000 Series brings RIGOL?s UltraVision II performance to the high speed engineering bench.
Analog bandwidth: 600 MHz, 1 GHz, and 2 GHz (single-channel and half-channel modes)
4 analog channels, 1 EXT channel, and 16 standard configuration of digital channels (required to
purchase the probe)
Up to 10 GSa/s real-time sample rate
Up to 500 Mpts memory depth (standard)
High waveform capture rate (over 600,000 waveforms per second)
Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback functions
Integrates 7 independent instruments into 1, including digital oscilloscope, 16-channel logic
analyzer, spectrum analyzer, arbitrary waveform generator (option), digital voltmeter, 6-digit
frequency counter and totalizer, and protocol analyzer (option)
