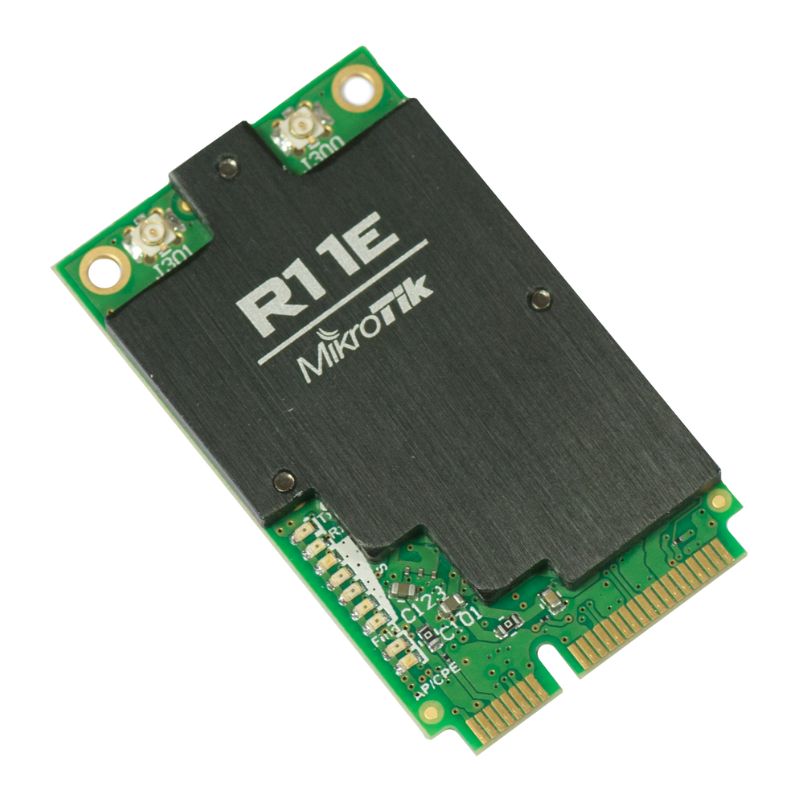

R11e-2HnD
802.11b/g/n miniPCI-e card with u.fl connectors
The "low-profile" attribute of the R11e-2HnD holds significant value for installations where space optimization is paramount, especially within devices like laptops and compact systems. Its streamlined form factor ensures seamless integration without compromising the device's sleek design.
While offering slightly reduced output power, the R11e-2HnD remains fully capable of establishing dependable wireless connections. The incorporation of a u.FL connector enhances adaptability, enabling users to attach various types of antennas tailored to their networking needs. This feature proves pivotal in customizing signal coverage and performance.
Additional information
| Product code | R11e-2HnD |
|---|---|
| Certification | FCC, IC |
| Connector | uFl |
| Format | miniPCIe |
| Max power consumption | 4.6 W |
| Storage size | 4 KB |
| Storage type | FLASH |
| Tested ambient temperature | -40C to +65C |
| Wi-Fi generation | Wi-Fi 4 |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz chip model | AR9582 |
| Wireless 2.4 GHz number of chains | 2 |
