R2SHPn
802.11b/g/n 2.4Ghz Super High Power MiniPCI card with MMCX connector
The new 2.4GHz super high power wireless card for long range links and powerful access points. This is the professional choice for reaching the last mile - high transmit power will give you the ability to reach even further than before. Up to 125Mbit throughput is possible with this device! Works in the 2.4GHz frequency (2192-2732MHz depending on country regulations)
The card features built-in LED indicators for wireless mode, connection status (connected, searching, disabled), TX and RX activity and wireless signal strength - just looking at the card will help with installation and alignment.

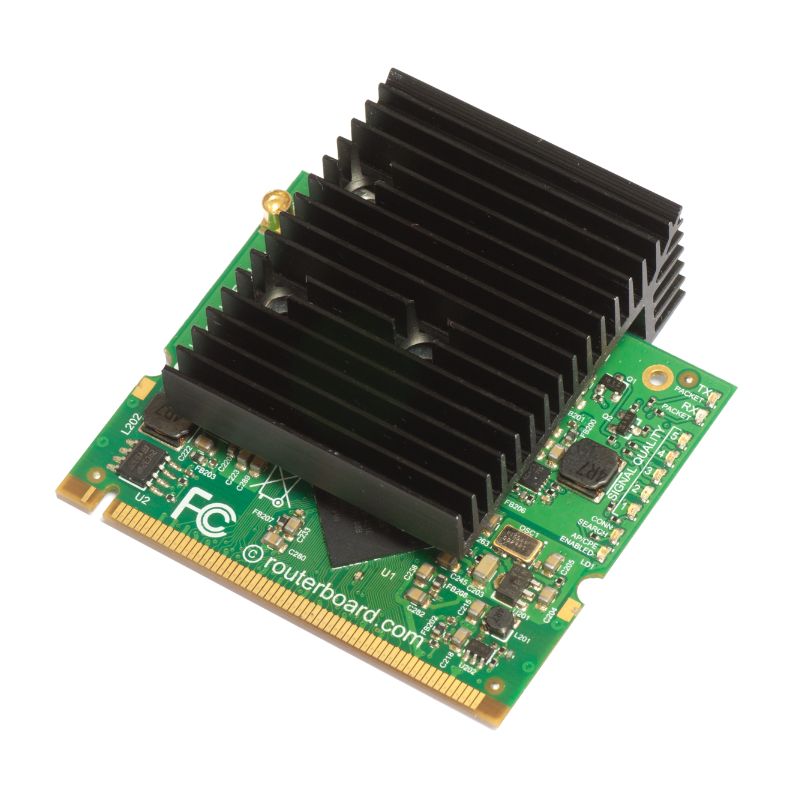

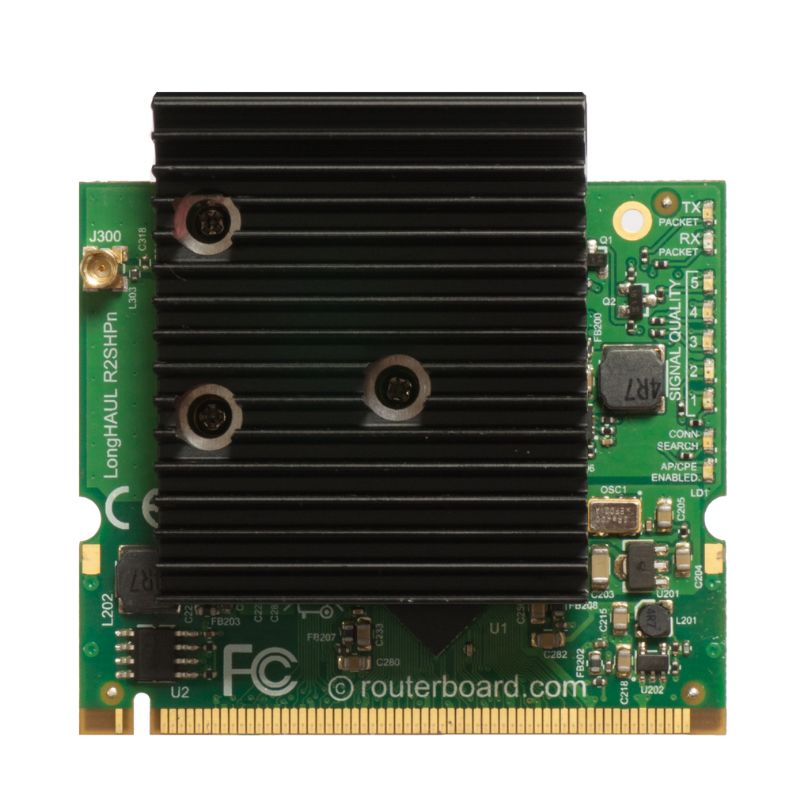

The card comes with a preinstalled industrial grade heatsink, one MMCX connector and nine LED indicator lights.
Additional information
| Bands | 2192-2734Mhz |
|---|---|
| Antenna header count | 1 |
| Chipset | AR9223 |
| Format | miniPCI |
| Connector | MMCX |
| Output power | 32dBm |
| Storage size | 4 KB |
| Storage type | FLASH |
| Wi-Fi generation | Wi-Fi 4 |
| Wireless 2.4 GHz Max data rate | 150 Mbit/s |
| Wireless standards | 802.11b/g/n |
