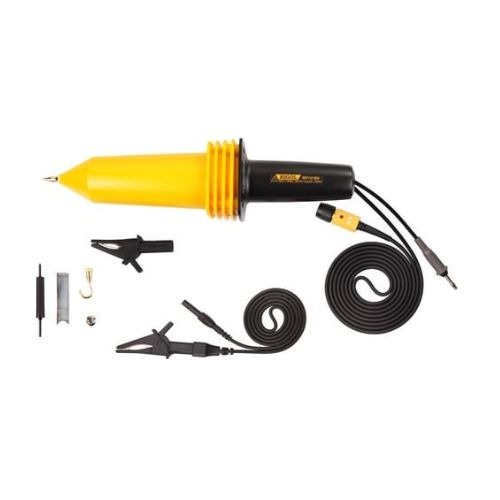

RP1018H

High voltage probe can prevent high voltage testers from subjecting to unexpected shocks when doing high voltage measurement work. Before using the high voltage probe, the operator must read and fully understand the safety rules. In addition, this high voltage probe only for the person who are trained, experienced, or otherwise qualified to recognize hazardous situations and who trained in the safety precautions that necessary to avoid possible injury when using such a device.

Bandwidth: DC ~ 150MHz
Damping factor: 1000: 1
Input resistance: 200MO
Input capacity: 1,5pF
Maximum input voltage: DC + AC peak: 18kV CAT II; AC RMS CAT II 12kV
Maximum current: 90?A
Compensation range: 10pF ~ 35pF
